Preserflo MicroShunt: A New Approach to POAG

New subconjunctival filtration procedures promise to predictably lower intraocular pressure (IOP) while reducing risks and accelerating recovery of patients with primary-open angle glaucoma (POAG).

Glaucoma affects over 60 million people worldwide and is the leading cause of irreversible blindness, responsible for bilateral blindness in over eight million people globally.1 In Australia, glaucoma is one of the most commonly encountered ophthalmic conditions, affecting over 300,000 people.2,3 Because glaucoma is often asymptomatic in the early stages, over 50% of cases are undiagnosed.2 Due to an ageing population, the prevalence of this condition is expected to increase substantially over the coming decades.

The goal of management is to prevent vision loss from glaucoma in a patient’s lifetime and to maintain or enhance quality of life. Lowering IOP remains the only treatment proven to prevent vision loss from this disease.5,6,7,8

Concerningly, long-term use of topical glaucoma medications and/or toxic preservatives cause local inflammation in the conjunctiva23 and increase the risk that glaucoma surgery will fail

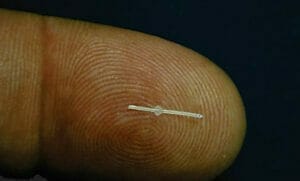

Figure 1. The Preserflo MicroShunt.

For patients where IOP remains uncontrolled despite maximum tolerated medical therapy, and/or glaucoma progression necessitates surgery, trabeculectomy has been the most frequently performed procedure.9 While trabeculectomy is effective at lowering IOP, the degree of IOP reduction can be unpredictable, visual recovery may be prolonged, multiple post-operative visits and/or interventions are required, and serious adverse events such as hypotony, bleb leak, and endophthalmitis can occur.10

Fortunately, advances in glaucoma surgery now promise more consistent and predictable outcomes in a shorter procedure with faster recovery and an improved safety profile. An understanding of these new interventions, and where they fit in the treatment paradigm, is important in providing the highest-level of patient care for people with glaucoma.

Important studies have shown that new subconjunctival filtration procedures coming to Australia have proven efficacy and safety. These procedures promise to predictably lower IOP while reducing risks and accelerating recovery, thereby enabling patients to have surgery at an earlier stage before significant vision loss has already occurred.

Figure 2. Eye one month after Preserflo
MicroShunt implant.


While selective laser trabeculoplasty (SLT) is now recommended as first-line therapy for open-angle glaucoma,11 daily glaucoma eye drops are a treatment for many patients. Medical treatment usually consists of a prostaglandin analogue; however, not infrequently a second, third, or even fourth medication is required.12 Studies show that up to 59% of patients continue to progress despite medical therapy.13 In some cases, this is due to non-adherence, which leads to faster progression and puts patients at greater risk of visual loss.14,15 In one study, 45% of patients used their drops less than 75% of the time, despite knowing they were being monitored.16 Common reasons for non-adherence include forgetfulness, difficulty with drop administration, and medication schedules that require multiple drops per day.17 However, even when adherence with medical therapy is excellent, progression is more likely to occur in medically-treated patients compared to those treated with selective laser trabeculoplasty, minimally invasive glaucoma surgery (MIGS), or conventional surgery.11,18–20 This is likely due to greater diurnal fluctuation in medically treated patients that results in optic nerve damage.21 In our study comparing medical therapy with SLT, we found better diurnal IOP control and reduced IOP fluctuation with SLT in patients with open-angle glaucoma.22

In addition to failure to control disease progression, glaucoma eye drops may be associated with local and systemic side effects, ocular surface disease, and reduced quality of life. We surveyed over 2,500 patients with glaucoma or ocular hypertension to assess patient satisfaction with topical ocular hypotensives.12 We found that symptoms such as redness, grittiness, burning, tearing, and blurred vision were present in up to 50% of patients.12 When respondents were asked if they would prefer an alternative to eye drops, 47% indicated they would.12 Concerningly, long-term use of topical glaucoma medications and/or toxic preservatives cause local inflammation in the conjunctiva23 and increase the risk that glaucoma surgery will fail.24 Fortunately, the introduction of minimally invasive glaucoma surgery (MIGS) is enabling a greater number of people with glaucoma to reduce or eliminate their need for glaucoma eye drops. Recently, the iStent inject was the first MIGS device shown to significantly improve Vision Related Quality of Life (VRQoL).25 These improvements relate to improved eye comfort as a result of being medication free with improvements in ocular surface symptoms and visionrelated acitivites.25

Concerningly, long-term use of topical glaucoma medications and/or toxic preservatives cause local inflammation in the conjunctiva23 and increase the risk that glaucoma surgery will fail


For patients where IOP remains uncontrolled despite medical therapy and laser treatment, surgery can be considered. The choice of procedure depends on the patient’s type and stage of glaucoma, age and ocular co-morbidities, risk of complications, ability to attend follow-up, and preferences. The choice is individualised to each patient and surgery will follow a detailed discussion of the risks and benefits.

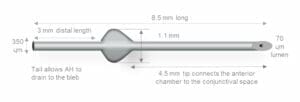

Figure 3. Dimensions of the Preserflo MicroShunt.

For patients with mild-to-moderate POAG not responsive to medical therapy and/or SLT, or where medical therapy is not tolerated due to side effects, the most appropriate procedure is minimally invasive, such as iStent inject, Hydrus, or iTrack. With minimal risk, a MIGS procedure may reduce or eliminate the need for glaucoma medications, lower the risk of visual field progression, and reduce the need for future invasive surgery such as trabeculectomy.26 These procedures are performed via an ab interno approach, reliably reduce IOP, provide rapid recovery with minimal post-operative follow-up, and preserve the conjunctiva for future filtration procedures if required.

For patients with visually significant cataract, these procedures can be combined with cataract surgery. However, for patients who have already undergone cataract surgery, or do not have visually significant cataract, these procedures can now be performed as a standalone procedure. Medicare rules stipulate that standalone procedures must be performed by a specialist, with training in microbypass glaucoma surgery, who has been recognised by the conjoint committee. For patients with moderate-to-severe glaucoma, trabeculectomy has been the most commonly performed filtration surgery. However, it can be associated with vision-threatening complications such as hypotony, choroidal effusions, suprachoroidal haemorrhage, and endophthalmitis.10 These complications can occur even years after surgery. Therefore, many surgeons reserve trabeculectomy for eyes with severe glaucoma or those with progressive normal tension glaucoma who require a very low IOP.

Figure 4. Inserting the Preserflo MicroShunt.


Trabeculectomy bypasses the eye’s natural outflow pathways, creating an alternative route for aqueous to exit the anterior chamber.27 This procedure was described in the 1960s but is based on procedures described in the 19th century.28 While still the most common type of filtration surgery, the number of trabeculectomies being performed each year has been steadily declining.9 In trabeculectomy, a hole or fistula is created into the anterior chamber underneath a partial thickness scleral flap. This allows aqueous humour to drain from the anterior chamber into the space between the sclera and Tenon’s capsule, forming a subconjunctival reservoir of aqueous humour known as a bleb.


While effective at lowering IOP, trabeculectomy requires intensive post-operative follow-up and frequent interventions, such as releasable suture removal, laser suturelysis, injections of 5-fluorouracil (5-FU) anti-scarring medication, bleb needling, or injections of viscoelastic into the anterior chamber to adjust IOP in the early postoperative period. In a study of trabeculectomy, 78.2% of eyes required a post-operative intervention.29


During the period after surgery, visual recovery can be slow and vision may be blurred for six weeks to three months.30 Additionally, trabeculectomy can create significant surgically induced astigmatism, necessitating glasses or a change in prescription.31 This is due to the need to cut and then suture the sclera, as well as tightly close the conjunctiva to prevent bleb leak.


There are many factors that can affect the flow of aqueous, including the size of the fistula, the dimensions and thickness of the scleral flap, the tension of the scleral flap sutures, elasticity of the patient’s sclera, aqueous production, and resistance in the subconjunctival space. This can cause unpredictable outcomes, even with experienced surgeons. Over-drainage and hypotony is a potentially serious problem that can cause shallowing of the anterior chamber, choroidal effusions, hypotony maculopathy, and an increased risk of suprachoroidal haemorrhage. This is especially a risk in high myopia, uveitic glaucoma, aphakic glaucoma, and in eyes that have undergone vitrectomy. Hypotony can occur months or years after surgery. In a large multicentre study of trabeculectomy, 7.2% of eyes developed late onset hypotony.32

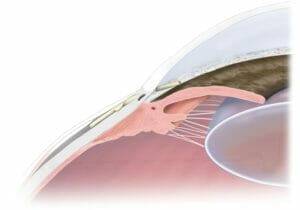

Figure 5. Eye anatomy with Preserflo MicroShunt implanted.


Patients undergoing trabeculectomy are at risk of both early and late post-operative complications. In a landmark clinical trial, early post-operative complications occurred in 37% of patients and late complications developed in 36%.33 Alarmingly, nearly one in five patients required a return to theatre for re-operation after trabeculectomy.33 While many complications are transient and self-limited, others may be permanent and sight-threatening.33


While trabeculectomy has been the standard for lowering IOP, it is far from perfect. The Preserflo MicroShunt (Figures 1 and 2) is a new device that provides significant IOP reduction with a much better safety profile and improved predictability. The Preserflo has been used widely in Europe since receiving CE marking in 2012, and has recently been approved by the Australian Therapeutic Goods Administration (TGA) for lowering IOP in patients with POAG. By improving safety and reliability, treatment can be performed earlier to preserve vision, reduce or eliminate glaucoma eye drops, and improve ocular surface disease.

it is essential that optometrists and ophthalmologists carefully monitor glaucoma to detect when the disease is uncontrolled or continues to progress, despite medical therapy, so that surgery can be offered in a timely fashion


The dimensions of Preserflo have been carefully selected to regulate flow and prevent hypotony. At 8.5mm in length with an internal lumen of 70μm in diameter (Figure 3), the device will provide sufficient resistance to aqueous outflow to prevent IOP falling below 6.5mmHg at normal rates of aqueous production (2.5μL/min).34,35 These dimensions are based on the Hagen- Poiseuille equation which enables calculation of the resistance to flow of liquid through a cylindrical tube. This provides safety against hypotony, a serious and unwanted complication after trabeculectomy. In a pivotal head to- head trial comparing Preserflo to trabeculectomy, transient hypotony was significantly higher in the trabeculectomy group (49.6% versus 28.9%; P<0.01).36 While small enough to prevent overdrainage, the device is sufficiently large to not be blocked by small cells or blood. The bevelled tip avoids occlusion by the iris.

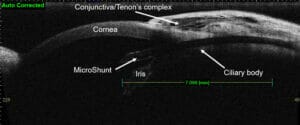

Figure 6. Optical coherence tomography depicting the Preserflo MicroShunt in place.


The procedure is significantly less invasive than trabeculectomy (Figures 4, 5 and 6). It is not necessary to perform a scleral flap, sclerostomy, or iridectomy; all of which are essential steps for trabeculectomy. This results in a shorter and more gentle procedure with faster visual recovery. I first performed Preserflo in 2016 as an investigator at Moorfields Eye Hospital in London as part of the pivotal randomised controlled trial. It was clear that the patients treated with Preserflo had a more predictable post-operative course and faster recovery, frequently returning to baseline visual acuity within one week of the operation.


The ideal and most comfortable bleb is posterior, low, and diffuse. Because the Preserflo is 8.5mm in length, and sits approximately 6mm back from the limbus, it directs fluid posteriorly to encourage low and diffuse blebs. This provides for a comfortable bleb with less risk of blebitis or bleb discomfort/ dysaesthesia. Because flow is directly away from the limbus, the risk of bleb leak is reduced. In the head-to-head comparison, the rate of bleb leak was 8.9% in the Preserflo group and 14.5% in the trabeculectomy group, although this difference did not reach statistical significance.36 As the Preserflo is covered by both the conjunctiva and Tenon’s capsule, the risk of erosion or exposure is low.


Most trabeculectomies fail because of fibrosis or scarring.37 The Preserflo is made of an ultrabiocompatible material called poly(styrene-block-isobutylene-blockstyrene) or SIBS. This material has been used in millions of cardiac stents38 and induces less inflammation and fibroblast proliferation than silicone, a material commonly used in other types of glaucoma drainage device.35,39–41


Both patients and surgeons desire predictable and consistent outcomes. In the pivotal trial, mean (± standard deviation) IOP reduced from 21.1 ± 4.9mmHg to 14.3 ± 4.3mmHg. One year after surgery, 94.5% of patients were on fewer medications compared to before surgery, and 65.5% were medication-free.36 This is a benefit that many patients enjoy, providing them with greater freedom from eye drops and a reduction in ocular surface disease symptoms. There are studies showing sustained reductions in IOP and medication for up to five years after Preserflo surgery.42 In one study, IOP reduced from 23.8 ± 5.3mmHg to 12.4 ± 6.5mmHg at five years.42 Over the same period of time, medications reduced from 2.4 ± 1.0 prior to surgery to 0.8 ± 1.3 mmHg at five years.42


Patients desire rapid recovery with few interventions and visits. Because the Preserflo regulates flow from the moment it is inserted, it does not require suture removal or laser suturelysis to lower IOP in the post-operative period. In the pivotal trial, only 6% of patients who received Preserflo required a post-operative intervention compared to 49% of patients who underwent trabeculectomy.36 This resulted in less frequent post-operative visits for patients receiving Preserflo.


The pivotal trial confirmed the favourable safety profile of Preserflo. Reassuringly, endothelial cell counts were the same between Preserflo and trabeculectomy groups.36 Visionthreatening complications were infrequent. With any filtration procedure, it is important the surgeon is experienced and able to manage bleb leak, bleb-related infections, shallow anterior chamber, choroidal effusions, and malignant glaucoma. Fortunately, these events occur in 1% or fewer of patients.


To help preserve eyesight, it is essential that optometrists and ophthalmologists carefully monitor glaucoma to detect when the disease is uncontrolled or continues to progress, despite medical therapy, so that surgery can be offered in a timely fashion. Newer surgical procedures now mean that surgery can be offered earlier, before significant vision loss has occurred. The Preserflo’s unique design and less invasive approach combines the benefits of subconjunctival filtration with the advantages of minimally invasive surgery. By regulating flow, the Preserflo provides for a faster recovery with fewer post-operative interventions and a lower risk of hypotony compared to conventional trabeculectomy surgery. By using novel materials and innovative design, the Preserflo addresses many of the unmet needs in glaucoma surgery, providing predictable IOPlowering and enhanced safety. Ultimately, this helps us to achieve our goal of preventing vision loss from glaucoma and maintaining or enhancing the quality of life of our patients.

To earn your CPD hours from this article visit mieducation.com/preserflo-microshunt-a-newapproach- to-poag.

Dr Nathan Kerr is a fellowship-trained glaucoma subspecialist in Melbourne. Dr Kerr specialises in minimally invasive glaucoma surgery (MIGS) and completed a prestigious glaucoma fellowship at Moorfields Eye Hospital in London where he trained in MIGS under the world-renowned surgeon Mr Keith Barton. Dr Kerr was one of the first Australian surgeons to perform the PreserFlo MicroShunt and he has been invited to teach MIGS surgery in the United Kingdom, Switzerland, France, and Australia. Dr Kerr serves as a Glaucoma Section Editor for Clinical and Experimental Ophthalmology and is Principal Investigator in Glaucoma at the Centre for Eye Research Australia. Dr Kerr is a consultant ophthalmologist at the Royal Victorian Eye and Ear Hospital and consults privately at Eye Surgery Associates in East Melbourne, Doncaster, and Vermont South. doctorkerr.com.au


  1. Quigley HA, Broman AT. The number of people with glaucoma worldwide in 2010 and 2020. Brit J Ophthalmol 2006;90:262.
  2. Keel S, Xie J, Foreman J, et al. Prevalence of glaucoma in the Australian National Eye Health Survey. Brit J Ophthalmol 2019;103:191.
  3. Mitchell P, Smith W, Attebo K, Healey PR. Prevalence of Open-angle Glaucoma in Australia The Blue Mountains Eye Study. Ophthalmology 1996;103:1661–1669.
  4. Tham Y-C, Li X, Wong TY, et al. Global Prevalence of Glaucoma and Projections of Glaucoma Burden through 2040. Ophthalmology 2014;121:2081–2090.
  5. Garway-Heath DF, Crabb DP, Bunce C, et al. Latanoprost for open-angle glaucoma (UKGTS): a randomised, multicentre, placebo-controlled trial. Lancet Lond Engl 2014;385:1295–304.
  6. Heijl A, Leske MC, Bengtsson B, et al. Reduction of Intraocular Pressure and Glaucoma Progression. Arch Ophthalmol-chic 2002;120:1268.
  7. Collaborative Normal Tension Glaucoma Study Group. Comparison of glaucomatous progression between untreated patients with normal-tension glaucoma and patients with therapeutically reduced intraocular pressures. Am J Ophthalmol 1998;126:487–497.
  8. Chauhan BC, Drance SM. The relationship between intraocular pressure and visual field progression in glaucoma. Graefe’s Archive Clin Exp Ophthalmol 1992;230:521–526.
  9. Kerr NM, Kumar HK, Crowston JG, Walland MJ. Glaucoma laser and surgical procedure rates in Australia. Brit J Ophthalmol 2016;100:bjophthalmol-2015-307994.
  10. Gedde SJ, Schiffman JC, Feuer WJ, et al. Treatment Outcomes in the Tube Versus Trabeculectomy (TVT) Study After Five Years of Follow-up. Am J Ophthalmol 2012;153:789-803.e2.
  11. Gazzard G, Konstantakopoulou E, Garway-Heath D, et al. Selective laser trabeculoplasty versus eye drops for first-line treatment of ocular hypertension and glaucoma (LiGHT): a multicentre randomised controlled trial. Lancet 2019;393:1505–1516.
  12. Kerr NM, Patel HY, Chew SS, et al. Patient satisfaction with topical ocular hypotensives. Clin Exp Ophthalmol 2013;41:27–35.
  13. Leske MC, Heijl A, Hussein M, et al. Factors for Glaucoma Progression and the Effect of Treatment: The Early Manifest Glaucoma Trial. Arch Ophthalmol-chic 2003;121:48–56.
  14. Susanna R, Moraes CGD, Cioffi GA, Ritch R. Why Do People (Still) Go Blind from Glaucoma? Transl Vis Sci Technology 2015;4:1–1.
  15. Newman-Casey PA, Niziol LM, Gillespie BW, et al. The Association between Medication Adherence and Visual Field Progression in the Collaborative Initial Glaucoma Treatment Study. Ophthalmology 2020;127:477–483.
  16. Okeke CO, Quigley HA, Jampel HD, et al. Adherence with Topical Glaucoma Medication Monitored Electronically The Travatan Dosing Aid Study. Ophthalmology 2009;116:191–199.
  17. Newman-Casey PA, Robin AL, Blachley T, et al. The Most Common Barriers to Glaucoma Medication Adherence A Cross-Sectional Survey. Ophthalmology 2015;122:1308– 1316.
  18. Samuelson TW, Chang DF, Marquis R, et al. A Schlemm Canal Microstent for Intraocular Pressure Reduction in Primary Open-Angle Glaucoma and Cataract The HORIZON Study. Ophthalmology 2018;126:29–37.
  19. Samuelson TW, Sarkisian SR, Lubeck DM, et al. Prospective, Randomized, Controlled Pivotal Trial of iStent inject Trabecular Micro-Bypass in Primary Open-Angle Glaucoma and Cataract: Two-Year Results. Ophthalmology 2019;126:811–821.
  20. Anderson DR, Study NTG. Collaborative Normal Tension Glaucoma Study. Curr Opin Ophthalmol 2003;14:86–90.
  21. Danesh-Meyer HV, Papchenko T, Tan Y, Gamble GD. Medically Controlled Glaucoma Patients Show Greater Increase in Intraocular Pressure than Surgically Controlled Patients with the Water Drinking Test. Ophthalmology 2008;115:1566–1570.
  22. Kerr NM, Lew HR, Skalicky SE. Selective Laser Trabeculoplasty Reduces Intraocular Pressure Peak in Response to the Water Drinking Test. J Glaucoma 2016;25:727–731.
  23. Baudouin C, Hamard P, Liang H, et al. Conjunctival epithelial cell expression of interleukins and inflammatory markers in glaucoma patients treated over the long term. Ophthalmology 2004;111:2186–2192.
  24. Lavin MJ, Wormald RPL, Migdal CS, Hitchings RA. The Influence of Prior Therapy on the Success of Trabeculectomy. Arch Ophthalmol-chic 1990;108:1543–1548.
  25. Samuelson TW, Singh IP, Williamson BK, et al. Quality of Life in Primary Open-Angle Glaucoma and Cataract: An Analysis of VFQ-25 and OSDI From the iStent inject Pivotal Trial. Am J Ophthalmol 2021;229:220–229.
  26. Ahmed IIK, Rhee DJ, Jones J, et al. Three-year findings of the HORIZON trial: a Schlemm canal microstent for pressure reduction in primary open angle glaucoma and cataract. Ophthalmology 2020.
  27. Cairns JE. Trabeculectomy. Preliminary report of a new method. Am J Ophthalmol 1968;66:673–9.
  28. Razeghinejad MR, Spaeth GL. A History of the Surgical Management of Glaucoma. Optometry Vision Sci 2011;88:E39–E47.
  29. King AJ, Rotchford AP, Alwitry A, Moodie J. Frequency of bleb manipulations after trabeculectomy surgery. Brit J Ophthalmol 2007;91:873.
  30. Francis BA, Hong B, Winarko J, et al. Vision Loss and Recovery After Trabeculectomy: Risk and Associated Risk Factors. Arch Ophthalmol-chic 2011;129:1011–1017.
  31. Pakravan M, Alvani A, Esfandiari H, et al. Posttrabeculectomy ocular biometric changes. Clin Exp Optom 2017;100:128–132.
  32. Kirwan JF, Lockwood AJ, Shah P, et al. Trabeculectomy in the 21st century: a multicenter analysis. Ophthalmology 2013;120:2532–9.
  33. Gedde SJ, Herndon LW, Brandt JD, et al. Postoperative Complications in the Tube Versus Trabeculectomy (TVT) Study During Five Years of Follow-up. Am J Ophthalmol 2012;153:804-814.e1.
  34. Acosta AC, Espana EM, Yamamoto H, et al. A Newly Designed Glaucoma Drainage Implant Made of Poly(styreneb- isobutylene-b-styrene): Biocompatibility and Function in Normal Rabbit Eyes. Arch Ophthalmol-chic 2006;124:1742.
  35. Pinchuk L, Riss I, Batlle JF, et al. The development of a micro-shunt made from poly(styrene- block -isobutyleneblock -styrene) to treat glaucoma. J Biomed Mater Res Part B Appl Biomaterials 2015;105:211–221.
  36. Baker ND, Barnebey HS, Moster MR, et al. Ab-externo MicroShunt versus Trabeculectomy in Primary Open-Angle Glaucoma: 1-year Results from a 2-year Randomized, Multicenter Study. Ophthalmology 2021.
  37. Schlunck G, Meyer-ter-Vehn T, Klink T, Grehn F. Conjunctival fibrosis following filtering glaucoma surgery. Exp Eye Res 2016;142:76–82.
  38. Boden M, Richard R, Schwarz MC, et al. In vitro and in vivo evaluation of the safety and stability of the TAXUS® Paclitaxel-Eluting Coronary Stent. J Mater Sci Mater Medicine 2009;20:1553–1562.
  39. Pinchuk L, Wilson GJ, Barry JJ, et al. Medical applications of poly(styrene-block-isobutylene-block-styrene) (“SIBS”). Biomaterials 2008;29:448–460.
  40. Pinchuk L, Riss I, Batlle JF, et al. The use of poly(styreneblock- isobutylene-block-styrene) as a microshunt to treat glaucoma. Regen Biomaterials 2016;3:137–42.
  41. Pinchuk L, Riss I, Batlle JF, et al. The use of poly(styreneblock -isobutylene- block -styrene) as a microshunt to treat glaucoma. Regen Biomaterials 2016;3:137–142.
  42. Batlle JF, Corona A, Albuquerque R. Long-term Results of the PRESERFLO MicroShunt in Patients With Primary Openangle Glaucoma From a Single-center Nonrandomized Study. J Glaucoma 2021;30:281–286.
